Description

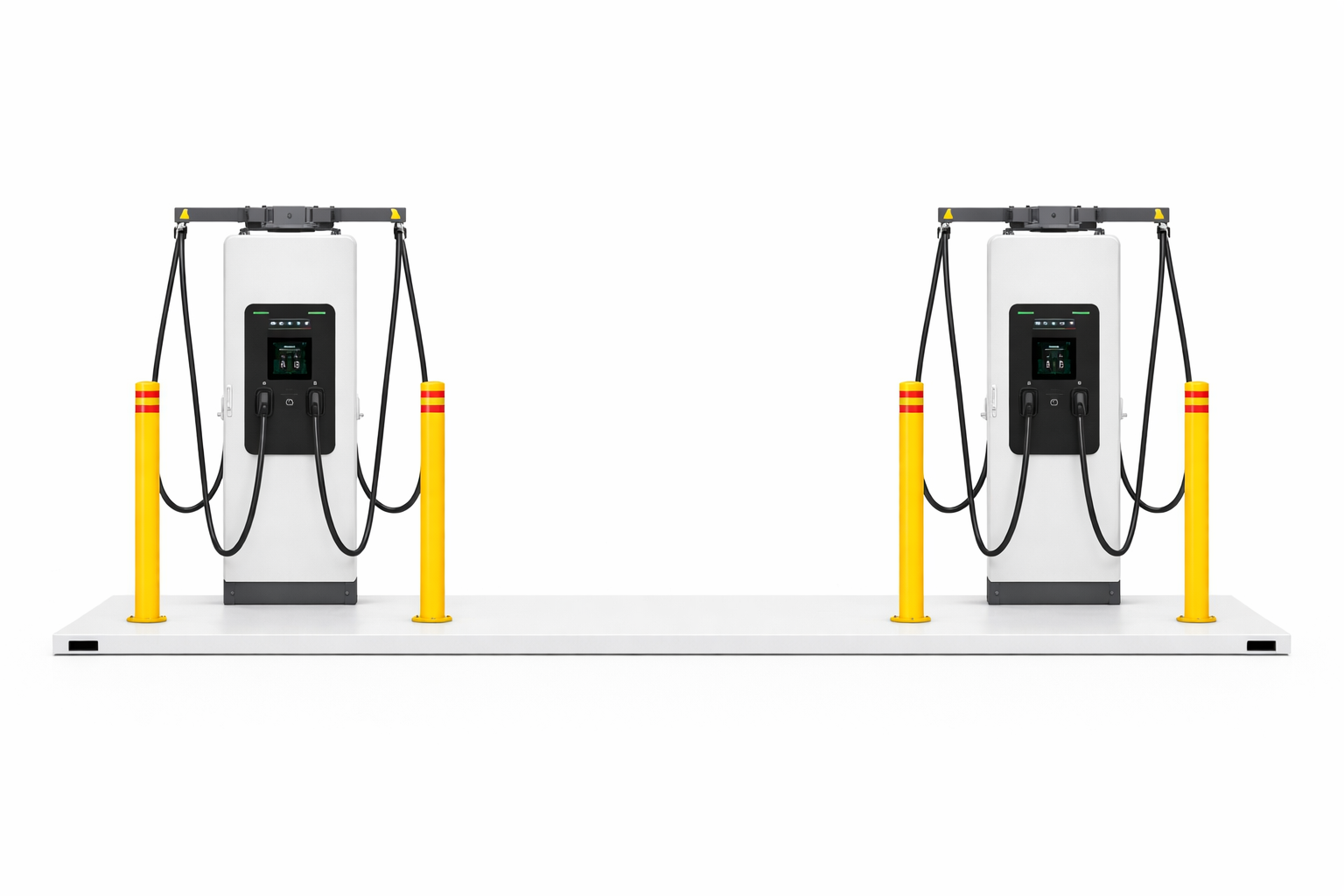

Skid Features
- Dimensions (HxWxD) – 1825 x 5750 x 1000mm (without cable management)
- Finish – Hot dip galvanised steel
- Protection – bollards
Optional Extras
- Powder coating
- Dynamic load management
- Battery storage
General Information
| AC Rated Input Power | 400V/3P+N+PE 50/60Hz |
| AC Input Voltage Range | 400V±15% |
| AC Rated Input Current | 185A |
| Power Factor | ≥0.99 @ Full Load |
| Efficiency | 95%, 96.5% (optional), @ Full Load |
| Grid Type | TN-S, TN-C, TN-C-S, TT |
| Connector Type | CCS2+CCS2
GB/T+GB/T CCS2+GB/T |
| Rated Power | 120kW |
| Output Voltage | 150-1000Vdc |
| Output Current | CCS2：rated 300A
GB/T：rated 250A, boost 300A |
User Interface
| Display | 10.4-inch touch screen |
| Support Language | English (Other languages available upon request) |
| Button and Switch | Emergency stop button |
| User Authentication | RFID card, App (optional) |
| RFID Reader | ISO/IEC 14443 A/B, ISO/IEC 18092, IEC/ISO 15693 |
Communication
| Network Interface | 4G, Wi-Fi, Ethernet |
| Protocol (EVSE & Backend) | OCPP 1.6J, OCPP 2.0.1 |
| Protocol (EVSE & EV) | DIN 70121, ISO 15118 |
Environmental
| Operating Temperature | -30℃ to +55℃ (Derating above 50℃) |
| Storage Temperature | -40℃ to +70℃ |
| Humidity | 5% to 95% （no condensation） |
| Altitude | ≤2000m |
Mechanical
| Enclosure | IP55 / IK10 (IK08 for screen) |
| Cooling | Forced air cooling |
| Charging Cable Length | 5m (optional) |
| Cable Management System | Optional / Swing Arm version
5m cable @ approx. 3.8m operating range (cable will not touch ground) 6m cable @ approx. 4.7m operating range (0.6m cable will be on ground) |
| Dimensions (HxWxD) | 1790 x 750 x 720mm (without connector holder and cable management system) |
| Weight | Approx. 345kg (without cable management system) Approx. 28kg cable management system |
| Installation | Ground mounting |
Certification and Standards
| Standards and compliance | IEC 61851-1, IEC 61851-21-2, IEC 61851-23, LVD 2014/35/EU, RED 2014/53/EU |
| Certification | CE, CB |
